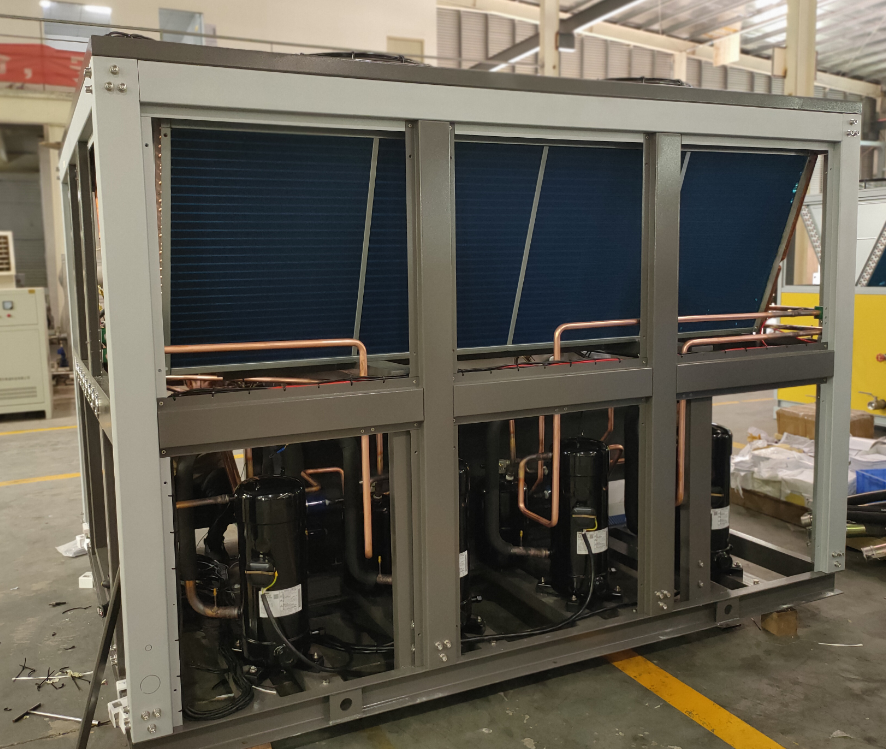

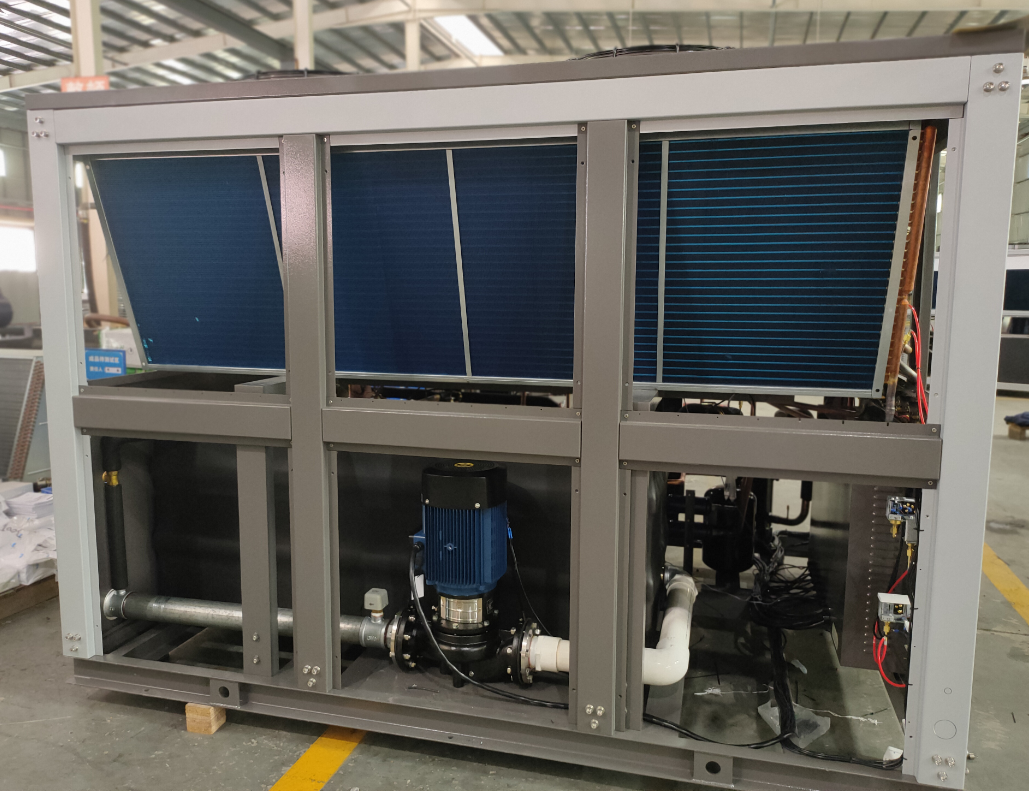

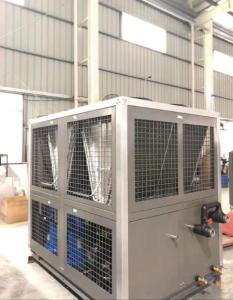

Industrial Scroll Air Cooled Chiller For Injection Molding Machine

Name: Industrial Scroll Air Cooled Chiller For Injection Molding Machine
Brand: ANGES
Price: 1 USD

Quality Industrial Scroll Air Cooled Chiller For Injection Molding Machine wholesale

Brand Name : ANGES

Model Number : AC-60（F）

Place of Origin : China

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 400 units/ month

Delivery Time : 10-35 days

Packaging Details : Plywood case

Type : Air Cooled Type

Capacity : 60HP

Compressor type : Panosonic/Danfoss

Refrigerant : R410a/R407C/R134A/R22

Pump : Included 2 bar- 4 bar

Voltage : 3PH~220V/380/415V~50HZ/60HZ

Dimension(l*w*h) : 2700*2200*2000

Weight : 1650kg

Temperature range : 5℃ ~ 35℃

Application : Industrial Cooling Solutions,Plastic & rubber / Chemical etc / Air-conditioning

Contact Now

60ton Water Chiller Price Air Cooled Chiller glycol water chiller Modular Chiller Plant air cooled lab chiller 60hp

Plastic Industry Mold Packaged Chiller

Air-cooled industrial chiller units with cooling capacities from 3 to 185 kW (0.85 to 52.6 tons) are packaged and portable and include stainless steel #304 tanks, pumps, and popular plastic process cooling. In the plastic continuous production process, the chiller can accurately control the molding temperature, shorten the molding cycle, increase product quality, improve production efficiency. It usually requires a water temperature of 10-25 degrees, and cooling towers cannot meet this temperature.

Injection Molding Chiller Specification

Model Item		AC-60(F)
Nominal cooling capacity	Kcal/h	158928
	kw	184.8
Input power	kw	57.52
Power supply	3PH~380V/50HZ
Refrigerant	Type	R22
	Type of control	Expansion valve
Compressor	Type	Hermetic scroll type
	Power (kw)	49.84
Condenser	Type	Finned copper tube+low noise outer rotor fan
	Power(kw)	3.68
	Cooling air flow(m³ /h)	60000

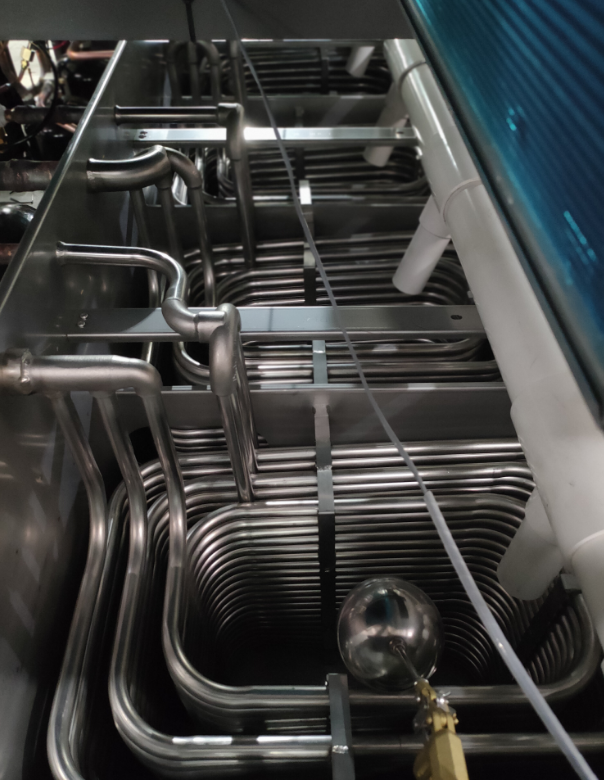

Evaporator	type
	Chilled water flow(m³ /h)	31.86
	Tank volume(L)	750
	Inlet/outlet pipe chiller(inch)	3
Water pump	Power(kw)	4
	Lift(m)	23
Safety protection	compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weight	kg	1850
Dimension	mm	270022002000

Anges chiller Application Range.

Plastic industry: Accurately control the mold temperature of various plastic processing.
Electronics industry: Stabilizing the molecular structure inside the production line of electronic components.
Electroplating industry: Control plating temperature, increase the density and smoothness of the plated parts.
Machinery industry: Control the pressure oil temperature of the oil pressure system.

Benefits of plastic process chiller applications

1. Ability to maintain constant and accurate control of plastic mold temperature.

2. Cooling plastic products, rapid molding, shorten the production cycle, improve production efficiency.

3. Accurate temperature control ability, cold water temperature can be accurate to ±1, to ensure the highest quality of the final product.

4. High cooling efficiency, no waste of water compared with cooling tower.

How to select the model of the chiller ?

1. We need to know the heat load of your process or chiller cooling capacity, it can be calculated roughly according to production capacity.
2. Required water temperature, water pressure and flow rate.
3. Application and power supply in local.
4. Max. Ambient temperature in summer day
5. Customized special specifications are acceptable. Contact us for more chiller Specification by number +86 13923791048.

What can we do for the Chiller maintenance?

Tip 1: Keep Tubes Clean
Tip 2: Ensure a Leak-free Unit
Tip 3: Sustain Proper Water Treatment(prevent scale, corrosion)
Tip 4: Analyze Oil and Refrigerant
